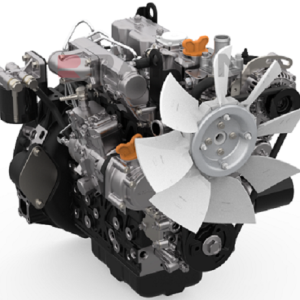

4D24TI – Industrial

  /   4D24TI – Industrial

Product introduction:
1. This motor is small in size and lightweight, so it can be installed and used in a small space;
2. Tunnel structure is adopted, so that the reliability of the motor is guaranteed and the noise is effectively controlled;
3. This engine features high torque and high torque reserve;
4. PTO output torque is large, and the hydraulic pump operates safely and reliably;
5. The layout of the oil filter and diesel filter is reasonable, so it is easy to disassemble and maintain;
6. Unique oil consumption technology ensures the oil consumption rate is lower than 0.15L/KW.h;
7. International brand fuel pump is used together with low friction technology to ensure lower fuel consumption and more.
Good speed adjustment; At the same time, the motor can be equipped with Weifu electronically controlled VP rotor pump, so that the speed regulation is within 1%;
8. The temperature of engine inlet and outlet water is lower than 6 degrees, which allows customers to have better terminal matching.

Category:

Description

NO. Items Technical parameters
1 Engine model 4D24TI19 4D24TI18 4D24TI15 4D24TI00 4D24TI06 4D24TI12
2 Engine type In line 4 and 4 stroke,water cooled
3 Intake air system Turbo inter cooling
4 combustion type DI/ω shape
5 Bore×Stroke(mm) 4-87×103
6 Valve per cylinder 2
7 Displacement (L) 2.45
8 Compression ratio 19：1
9 Cylinder type No liner
10 Dry weight kg 240（Aftertreatment included/without radiator/without inter cooler ）
11 Dimension（L×W×H）mm 917×586×728（Aftertreatment included/without radiator/without inter cooler ）
12 Lubricatingsystem Pressure and splashlubrication
13 Cooling type Forced water cooling closed cycle
14 Start type Starting motor 12V 2.3kw
15 Alternator 14V 90A
16 Applicableregulations Off-Road Europe Stage V
17 Technical routing CR+EGR+DOC+DPF
18 FIE system High Pressure Common Rail (CB18)
19 Oil capacity L 9.5 (upper limit)
20 Cooling Liquid L 8.5 (Including radiator and engine )
22 Heating type In-cylinder glow plug
23 Fire order 1—3—4—2
24 Crank Rotation CCW (from flywheel)
25 Prime power(kW)/speed（r/min） 44.2/2000 47.8/2000 51.5/2200 55.5/2400 55.5/2800 55.5/3000
26 Maximum torque/speed (Nm/ r/min) 280/1600 280/1600 280/1600 280/1600 280/1600 265/1800
27 Min. fuel consumption (g/kw·h ≤230 ≤230 ≤230 ≤230 ≤230 ≤230
28 Idle speed(r/min) 850±25
29 Governorsystem E-Governor
30 Oil consumption(g/kW·h) ≤0.2
31 Fuel type Summer：A product 0#,10# light diesel. Winter：A product 0#,-10#,-20#,-35# light diesel.
32 Oil type It is recommended to use Yuchai special engine oil with a quality grade of CF-4.
33 Ambient operating temperatures(°C) -30~45
34 Maximum allowable inlet resistance kPa 5
35 Maximum allowable exhaust resistance kPa 20
36 Smoke intensity of standard operating condition FSN ≤2
37 Voltage V 12
