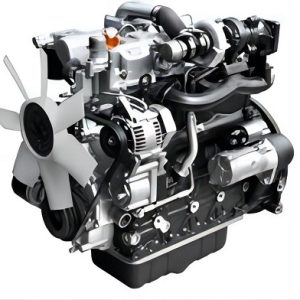

4D24 -Agriculture

  /   4D24 -Agriculture

Product introduction:
1. This motor is small in size and lightweight, so it can be installed and used in a small space;
2. Tunnel structure is adopted, so that the reliability of the motor is guaranteed and the noise is effectively controlled;
3. This engine features high torque and high torque reserve;
4. PTO output torque is large, and the hydraulic pump operates safely and reliably;
5. The layout of the oil filter and diesel filter is reasonable, so it is easy to disassemble and maintain;
6. Unique oil consumption technology ensures the oil consumption rate is lower than 0.15L/KW.h;
7. International brand fuel pump is used together with low friction technology to ensure lower fuel consumption and more.
Good speed adjustment; At the same time, the motor can be equipped with Weifu electronically controlled VP rotor pump, so that the speed regulation is within 1%;
8. The temperature of engine inlet and outlet water is lower than 6 degrees, which allows customers to have better terminal matching.

Category:

Description

NO. Items Technical specification
1 Engine model 4D2400 4D2401 4D2402 4D2403 4D2404
2 Type Vertical, In line, 4 stroke, water cooled
3 Injection system NA
4 Combustion chamber DI/ω
5 Cylinder-Bare(mm)×Stroke(mm) 4-87×103
6 Valve per cylinder 2
7 Displacement L 2.45
8 Compression ratio 19:1
9 Lubricating system Pressure and splash
10 Start type E-start
11 Governor system E-governor
12 Fuel system Electronically controlled rotor pump
13 Oil capacity(L) 9.5
14 Fire order 1—3—4—2
15 Crank rotation CCW(facing the flywheel)
16 Prime power(kW)/speed（r/min） 36.8/2400 33/2400 36.8/3000 33/3000 36.8/2700
17 Max. torque(N.m) 160 160 160 160 160
18 Max. Spped （r/min） 1600~1800 1600~1800 1600~1800 1600~1800 1600~1800
19 Min. Oil combustion rate(g/kW·h) ≤ 235 ≤ 235 ≤ 235 ≤ 235 ≤ 235
20 Oil combustion rate(g/kW·h) ≤0.4 ≤0.4 ≤0.4 ≤0.4 ≤0.4
21 Minimum adjustable no-load speed (r/min) 1000 1000 1000 1000 1000
22 Speed drop % ≤5
23 Allowable tilt angle trim（°） 35
24 heel（°） 35
25 Minimum starting
temperature		 No auxiliary device -10℃
26 auxiliary device -30℃
27 Allowable altitude （m） ≤1000m，power drop≤10%
28 Maximum allowable intake resistance     kPa 2
29 Maximum allowable exhaust back pressure
kPa		 5
30 Emission level Off-road China Ⅲ
31 Smoke intensity of standard operating
condition FSN		 ≤3.5
32 Noise limit Lp dB(A) （Bare engine）（1
米）		 ≤92
33 Fuel type Summer：GB 252-2000 or 0#、10#light dissel oil,
Winter：GB 252-2000 or 0#、-10#、-20#、-35#light dissel oil
34 Oil type Recommend the use of quality grade CF-4 Yuchai special oil.
Summer： 40、15W-40，Winter: 30, 10W-30 or other diesel engine oil that is not lower than CF grade in GB11122-2006 and is suitable for the environment。
35 Dry weight kg 192 192 192 192 192
36 Dimension L×W×H mm 669×511×687 669×511×687 669×511×687 669×511×687 669×511×687
Remark：As technology advances, the above parameters will continue to improve the parameters of theupdate.
1 Engine model 4D2405 4D2406 4D2407 4D2408 4D2409
2 Type Vertical, In line, 4 stroke, water cooled
3 Injection system NA
4 Combustion chamber DI/ω
5 Cylinder-Bare(mm)×Stroke(mm) 4-87×103
6 Valve per cylinder 2
7 Displacement L 2.45
8 Compression ratio 19:1
9 Lubricating system Pressure and splash
10 Start type E-start
11 Governor system E-governor
12 Fuel system Electronically controlled rotor pump
13 Oil capacity(L) 9.5
14 Fire order 1—3—4—2
15 Crank rotation CCW(Facing the flywheel)
16 Prime power(kW)/speed（r/min） 33/2700 36.8/2600 33.5/2600 33/2200 29.5/2200
17 Max. torque(N.m) 160 160 160 160 160
18 Max. Spped （r/min） 1600~1800 1600~1800 1600~1800 1600~1800 1600~1800
19 Min. Oil combustion rate(g/kW·h) ≤ 235 ≤ 235 ≤ 235 ≤ 235 ≤ 235
20 Oil combustion rate(g/kW·h) ≤0.4 ≤0.4 ≤0.4 ≤0.4 ≤0.4
21 Minimum adjustable no-load speed (r/min) 1000 1000 1000 1000 1000
22 Speed drop % ≤5
23 Allowable tilt angle trim（°） 35
24 heel（°） 35
25 Minimum starting
temperature		 No auxiliary device -10℃
26 auxiliary device -30℃
27 Allowable altitude （m） ≤1000m，power drop≤10%
28 Maximum allowable intake resistance
kPa		 2
29 Maximum allowable exhaust back pressure
kPa		 5
30 Emission level Off-road China Ⅲ
31 Smoke intensity of standard operating
condition FSN		 ≤3.5
32 Noise limit Lp dB(A) （Bare engine）（1
米）		 ≤92
33 Fuel type Summer：GB 252-2000 or 0#、10#light dissel oil,
Winter：GB 252-2000 or 0#、-10#、-20#、-35#light dissel oil
34 Oil type Recommend the use of quality grade CF-4 Yuchai special oil.
Summer： 40、15W-40，Winter: 30, 10W-30 or other diesel engine oil that is not lower than CF grade in GB11122-2006 and is suitable for the environment。
35 Dry weight kg 192 192 192 192 192
36 Dimension L×W×H mm 669×511×687 669×511×687 669×511×687 669×511×687 669×511×687
Remark：As technology advances, the above parameters will continue to improve the parameters of theupdate.
1 Engine model 4D2410 4D2411 4D2412 4D2413 4D2414
2 Type Vertical, In line, 4 stroke, water cooled
3 Injection system NA
4 Combustion chamber DI/ω
5 Cylinder-Bare(mm)×Stroke(mm) 4-87×103
6 Valve per cylinder 2
7 Displacement L 2.45
8 Compression ratio 19:1
9 Lubricating system Pressure and splash
10 Start type E-start
11 Governor system E-governor
12 Fuel system Electronically controlled rotor pump
13 Oil capacity(L) 9.5
14 Fire order 1—3—4—2
15 Crank rotation CCW(facing the flywheel)
16 Prime power(kW)/speed（r/min） 29.5/2000 25.8/2000 28.5/1800 25.8/1800 29.5/2400
17 Max. torque(N.m) 160 160 160 160 160
18 Max. Spped （r/min） 1600~1800 1600~1800 1600~1800 1600~1800 1600~1800
19 Min. Oil combustion rate(g/kW·h) ≤ 235 ≤ 235 ≤ 235 ≤ 235 ≤ 235
20 Oil combustion rate(g/kW·h) ≤0.4 ≤0.4 ≤0.4 ≤0.4 ≤0.4
21 Minimum adjustable no-load speed (r/min) 1000 1000 1000 1000 1000
22 Speed drop % ≤5
23 Allowable tilt angle trim（°） 35
24 heel（°） 35
25 Minimum starting
temperature		 No auxiliary device -10℃
26 auxiliary device -30℃
27 Allowable altitude （m） ≤1000m，power drop≤10%
28 Maximum allowable intake resistance
kPa		 2
29 Maximum allowable exhaust back pressure
kPa		 5
30 Emission level Off-road China Ⅲ
31 Smoke intensity of standard operating
condition FSN		 ≤3.5
32 Noise limit Lp dB(A) （Bare engine）（1
米）		 ≤92
33 Fuel type Summer：GB 252-2000 or 0#、10#light dissel oil,
Winter：GB 252-2000 or 0#、-10#、-20#、-35#light dissel oil
34 Oil type Recommend the use of quality grade CF-4 Yuchai special oil.
Summer： 40、15W-40，Winter: 30, 10W-30 or other diesel engine oil that is not lower than CF grade in GB11122-2006 and is suitable for the environment。
35 Dry weight kg 192 192 192 192 192
36 Dimension L×W×H mm 669×511×687 669×511×687 669×511×687 669×511×687 669×511×687
Remark：As technology advances, the above parameters will continue to improve the parameters of theupdate.
